swarmx

XCAM F1

SPECIFICATION

  • Dimensions

    24 × 24 × 26.5mm

  • Sensor

    1/3

  • Resolution

    600 TV Lines

  • Video Output

    1.0V p-p Composite (75 Ohm)

  • Lowest Illuminance

    0.1 Lux

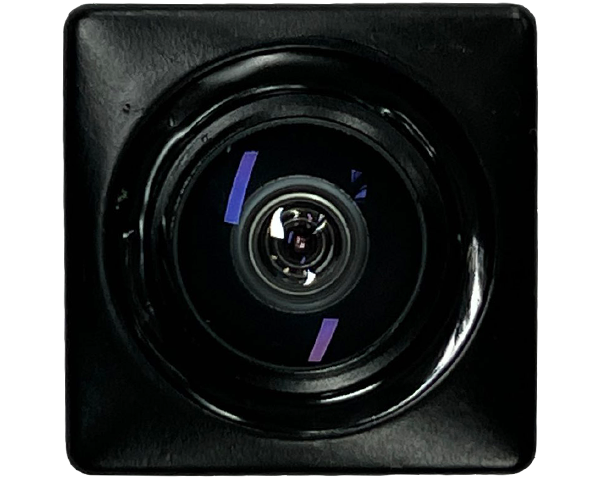

  • Lens and Angle of View

    f=1.6mm, Diagonal 190deg.

  • Number of Pixels

    0.40 M pixels

  • Image Mode

    · Multi-mode support (Top-view, Partition-view, PIP, LDC, etc.)
    · LDC1 : 3-zone view
    · LDC2 : Top view + PIP (Picture-in-Picture)

  • Functions and Key Features

    · Ultra-wide 190° Field of View with Image Correction (when mounted downward)
    · World’s First Mobile Parking Guide Line & adjustable additional guide lines (via portable programmer)
    · Smart Features: Mirror On/Off, DWDR, AGC, OSD adjustment supported
    · Ultra-compact Design: 24 × 24 × 26.5mm
    · Customizable Settings : Company name can be programmed on-screen / Over 30 camera settings adjustable (via portable programmer) / Parking guide line length, width, height, and color customizable
