swarmx

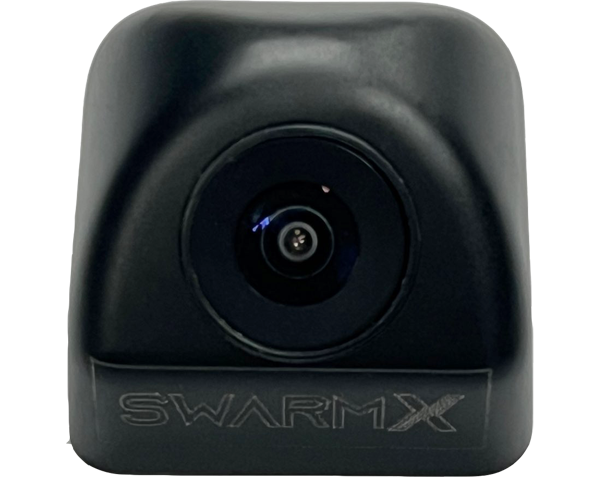

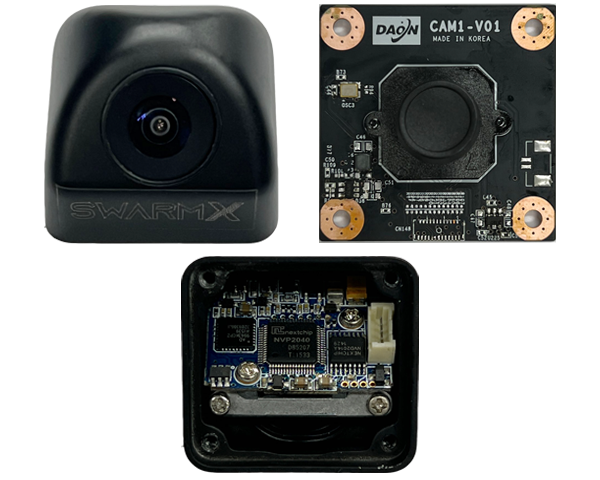

XCAM Z1

SPECIFICATION

  • Dimensions

    24 × 24 × 26.5mm

  • Sensor

    1/3

  • Resolution

    700 TV Lines

  • Video Output

    1.0V p-p Composite Video (75 Ohm)

  • Lowest Illuminance

    0.1 Lux

  • Lens and Angle of View

    f = 1.6mm, Diagonal 190deg.

  • Number of Pixels

    1.40 M pixels

  • Image Mode

    · Supports Multiple Viewing Modes (Top-view, Partition-view, PIP, LDC, etc.)
    · LDC1 : 3-zone view
    · LDC2 : Top view + PIP (Picture-in-Picture)
    · H Two Section + PIP : Two-zone split screen + PIPTop View + PIP
    · Top View + PIP Two Section : Top view + dual PIP zones

  • Functions and Key Features

    · Supports Mirror Mode (Mirror On/Off)
    · Supports DWDR (Digital Wide Dynamic Range) and AGC (Automatic Gain Control)
    · OSD (On-Screen Display) adjustable (screen UI customization)
    · Ultra-wide 190° angle of view + image distortion correction (LDC applied)
    · Customizable parking guide lines (adjustable length, width, height, and color)
    · World's smallest square design (24 × 24mm)
    · Camera settings can be adjusted via handheld programmer for over 30 different configurations
